HP DL320 AH691 5.4TB Storage Xeon 3070 2.66Ghz 6Gb RAM P800 SAS 14 X 450GB SAS

HP DL320 AH691 5.4TB Storage Xeon 3070 2.66Ghz 6Gb RAM P800 SAS 14 X 450GB SAS

Regular price $ 995.00
Regular price Sale price $ 995.00
Sale Sold out

HP ProLiant DL320s

AH691 HP Part # 293765-001

Comes with Intel Xeon 3070 2.67ghz Processor, 6Gb RAM, P800 SAS Controller, Qty 2 400W Power Supply

Two 450GB 15K RPM SAS Hard Drives are included for the operating system.

The other 12 slots have the same 450GB 15K RPM SAS Hard Drives for a Total Capacity of 5.4TB

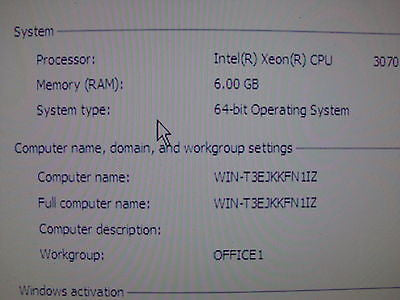

It does not come with an installed Operating system. The picture shows the tested functionality.


At a Glance
The HP ProLiant DL320s Server delivers Enterprise level features, storage optimization, and high-end performance at an entry level price. The Intel® Dual-Core processors, 14TB storage capacity, and DDR2 Memory support, enhance this ultra-dense 2U solution for both Enterprise and SMB customers.
  • Processors:
    • Dual-Core Intel® Xeon® Processor E6400 (2.67 GHz, 1066MHz Front Side Bus (FSB)), 2MB L2 Cache
    • Intel® 3010 Chipset with up to 1066 MHz FSB
  • Memory:
    • Supports up to 8 GB of PC2-5300 (667 MHz) Unbuffered DDR2 ECC SDRAM Memory
    • 4 DIMM sockets
  • Storage Controller: (occupies x8 slot)
    • HP Smart Array P800/256 MB Controller (RAID 0/1/5/6) (occupies x8 slot)
      NOTE: Includes BBWC.
  • Internal Drive Support:
    • Up to fourteen (12 in front/2 in rear 3.5" (Large Form Factor) SATA or SAS hard drives
    • Internal storage capacity of up to 14TB
    • Optional rear Slimline CD-RW/DVD-ROM 24X Combo Drive for internal DVD drive configuration
  • Network Controller:
    • Embedded NC324i PCIe Dual Port Gigabit Server Adapter
  • Expansion Slots:
    • (2) Expansion Slots: Two PCI Express (X8 connectors, x8 and x1)
  • USB 2.0 Ports:
    • Four Total: (2) internal; (2) rear
  • Redundancy:
    • Hard drives- Hot-plug SAS/SATA
    • Power - Hot plug, redundant standard
    • Fans - N+1 redundant, non-hot plug
  • Form Factor:
    • Height - 2U Rack, Length - 24.5"
  • P800 SAS RAID Card
Does not come with pre-installed operating system.





Call 805-642-6800 with any questions that you have
