Comes with Intel Xeon 3070 2.67ghz Processor, 6Gb RAM, P800 SAS Controller, Qty 2 400W Power Supply
Two 500GB Hard Drives are included for the operating system.

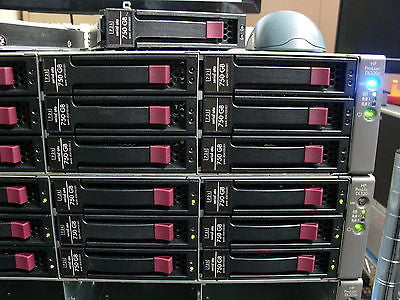

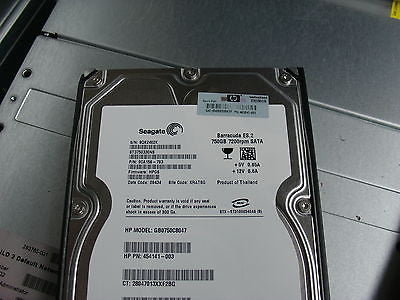

The other 12 slots have 750GBB Hard Drives for a Total Capacity of 10TB

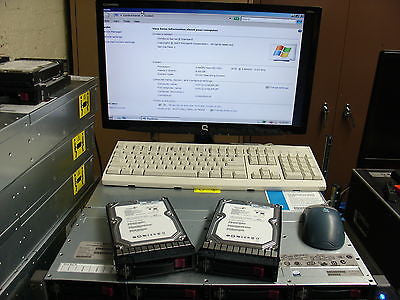

It does not come with an installed Operating system. The picture shows the tested functionality.
At a Glance
The HP ProLiant DL320s Server delivers Enterprise level features, storage optimization, and high-end performance at an entry level price. The Intel® Dual-Core processors, 14TB storage capacity, and DDR2 Memory support, enhance this ultra-dense 2U solution for both Enterprise and SMB customers.
Dual-Core Intel® Xeon® Processor E6400 (2.67 GHz, 1066MHz Front Side Bus (FSB)), 2MB L2 Cache
Intel® 3010 Chipset with up to 1066 MHz FSB
Supports up to 8 GB of PC2-5300 (667 MHz) Unbuffered DDR2 ECC SDRAM Memory
4 DIMM sockets
Storage Controller: (occupies x8 slot)
HP Smart Array P800/256 MB Controller (RAID 0/1/5/6) (occupies x8 slot) NOTE: Includes BBWC.
Internal Drive Support:
Up to fourteen (12 in front/2 in rear 3.5" (Large Form Factor) SATA or SAS hard drives
Internal storage capacity of up to 14TB
Optional rear Slimline CD-RW/DVD-ROM 24X Combo Drive for internal DVD drive configuration
Embedded NC324i PCIe Dual Port Gigabit Server Adapter
(2) Expansion Slots: Two PCI Express (X8 connectors, x8 and x1)
USB 2.0 Ports:
Four Total: (2) internal; (2) rear
Hard drives- Hot-plug SAS/SATA
Power - Hot plug, redundant standard
Fans - N+1 redundant, non-hot plug
Height - 2U Rack, Length - 24.5"
P800 SAS RAID Card
Does not come with pre-installed operating system.
