Comes with Intel Xeon 3070 2.67ghz Processor, 6Gb RAM, P800 SAS Controller, 2 X 400W Power Supply

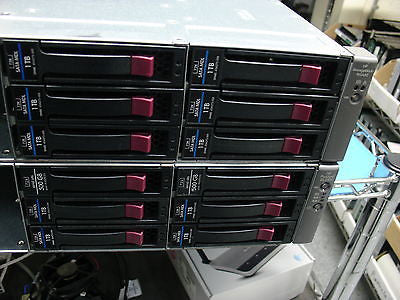

With 4 X 1TB drives, Two 72GB Hard Drives are included for the operating system.
The other 8 slots you will receive just the trays.
If you need additional Hard Drives, please let us know.

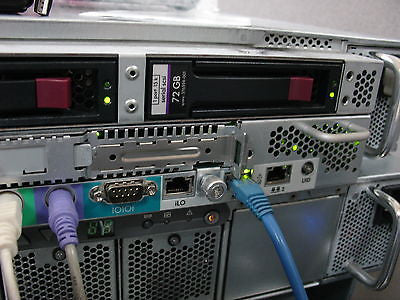

It does not come with an installed Operating system. The picture shows the tested functionality.
At a Glance
The HP ProLiant DL320s Server delivers Enterprise level features, storage optimization, and high-end performance at an entry level price. The Intel® Dual-Core processors, 14TB storage capacity, and DDR2 Memory support, enhance this ultra-dense 2U solution for both Enterprise and SMB customers.
Processors:
Dual-Core Intel® Xeon® Processor 3070 (2.67 GHz, 1066MHz Front Side Bus (FSB)), 2MB L2 Cache
Intel® 3010 Chipset with up to 1066 MHz FSB
Memory:
Supports up to 8 GB of PC2-5300 (667 MHz) Unbuffered DDR2 ECC SDRAM Memory
4 DIMM sockets
Storage Controller: (occupies x8 slot)
HP Smart Array P800/512 MB Controller (RAID 0/1/5/6/10) (occupies x8 slot) NOTE: Includes BBWC.
Internal Drive Support:
Up to fourteen (12 in front/2 in rear 3.5" (Large Form Factor) SATA or SAS hard drives
Internal storage capacity of up to 14TB
Optional rear Slimline CD-RW/DVD-ROM 24X Combo Drive for internal DVD drive configuration
Network Controller:
Embedded NC324i PCIe Dual Port Gigabit Server Adapter
Expansion Slots:
(2) Expansion Slots: Two PCI Express (X8 connectors, x8 and x1)
USB 2.0 Ports:
Four Total: (2) internal; (2) rear
Redundancy:
Hard drives- Hot-plug SAS/SATA
Power - Hot plug, redundant standard
Fans - N+1 redundant, non-hot plug
Form Factor:
Height - 2U Rack, Length - 24.5"
P800 SAS RAID Card
Does not come with pre-installed operating system.
Please Call 805-642-6800 with any questions that you have!!
