The HP ProLiant DL320s Server delivers Enterprise level features, storage optimization, and high-end performance at an entry level price. The Intel® Dual-Core processors, 14TB storage capacity, and DDR2 Memory support, enhance this ultra-dense 2U solution for both Enterprise and SMB customers.
-
Processors:
- Dual-Core Intel® Xeon® Processor E6400 (2.67 GHz, 1066MHz Front Side Bus (FSB)), 2MB L2 Cache
- Intel® 3010 Chipset with up to 1066 MHz FSB
-
Memory:
- Supports up to 8 GB of PC2-5300 (667 MHz) Unbuffered DDR2 ECC SDRAM Memory
- 4 DIMM sockets
-
Storage Controller: (occupies x8 slot)
- HP Smart Array P800/256 MB Controller (RAID 0/1/5/6) (occupies x8 slot)
NOTE: Includes BBWC.
-
Internal Drive Support:
- Up to fourteen (12 in front/2 in rear 3.5" (Large Form Factor) SATA or SAS hard drives
- Internal storage capacity of up to 14TB
- Optional rear Slimline CD-RW/DVD-ROM 24X Combo Drive for internal DVD drive configuration
-
Network Controller:
- Embedded NC324i PCIe Dual Port Gigabit Server Adapter
-
Expansion Slots:
- (2) Expansion Slots: Two PCI Express (X8 connectors, x8 and x1)
-
USB 2.0 Ports:
- Four Total: (2) internal; (2) rear
-
Redundancy:
- Hard drives- Hot-plug SAS/SATA
- Power - Hot plug, redundant standard
- Fans - N+1 redundant, non-hot plug
-
Form Factor:
- Height - 2U Rack, Length - 24.5"
- P800 SAS RAID Card
Does not come with pre-installed operating system.

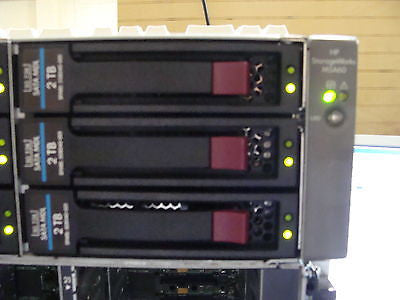

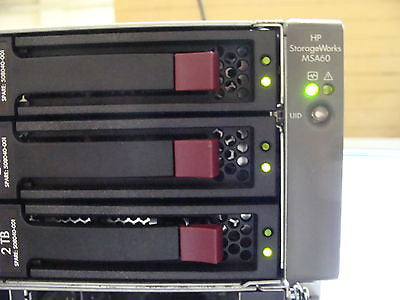

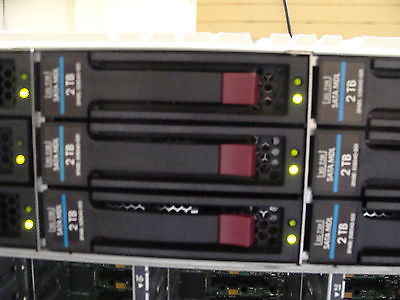

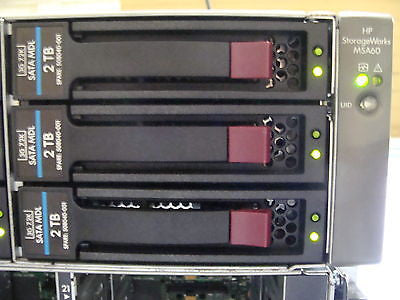

HP MSA60
StorageWorks Smart Array p/n 418408-B21

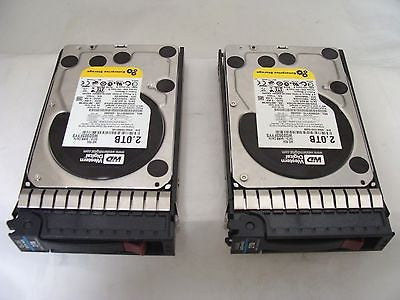

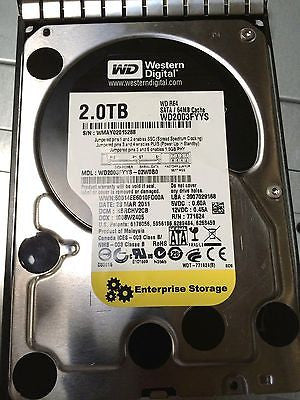

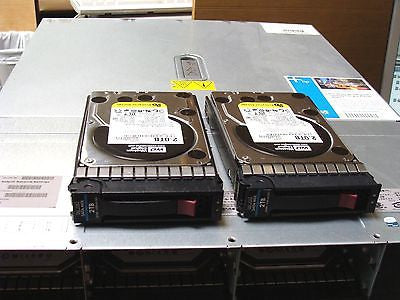

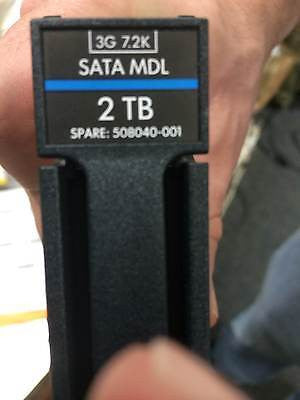

(With 12X 2TB SATA Hard Drives & Trays)
The Enclosure uses both SATA and SAS Drives
Standard Features The MSA60 Connects via SAS Interface
| Modular Smart Array Family |
The HP Modular Smart Array family delivers simple, affordable storage technology to meet today's demanding and growing IT needs. These storage solutions offer the best price/performance and best price/availability features for direct attach environments, small clusters, workgroups and entry-level SAN environments. Each solution is designed to be easy to deploy, secure, and reduce management costs, while driving rapid return on investment.
|
|
| Modular Smart Array 60 |
The HP Modular Smart Array 20 Enclosure (hereafter referred to as "MSA60") is a SATA or SAS 3.0Gb/s disk drive storage enclosure with SAS Serial Atached SCSI host connectivity. These enclosures deliver industry-leading availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The MSA20 delivers the ideal mix of low-cost and high capacity, for minimum I/O workloads such as reference data, archival, and disk-to-disk backup.
|
|
| Key Features |
- Serial-ATA 3G - Delivering data transfer rates greater than 100MB/s
- SAS host support - Delivering compatibility with 6th generation Smart Array controllers
- 2U rack height
- A common storage platform allows for future storage consolidation to the SAN
- Hot pluggable disk drives, power supplies, and fans
- Redundant fans, and redundant power supplies
- Each MSA20 enclosure comes with dual power supplies that are sufficient to provide power to the enclosure and maintain normal operating levels.
- Integrated Environmental Monitoring - Monitors environmental conditions within the enclosure and components such as the power supply and fans
- Easy removal of parts provides better serviceability. No tools are required!
- Provides storage capacity of up to 36TB per enclosure (using 1TB SATA disk drives).
Modular design allows up to 21 enclosures to be mounted in one 42U rack for a single rack storage capacity of up to 189TB of disk storage or up to 8 enclosures in an MSA1500 or a MSA1510i configuration for storage capacity of 64-TB in an entry-level SAN.
Call 805-642-6800 with any questions that you have
|
|
